Description

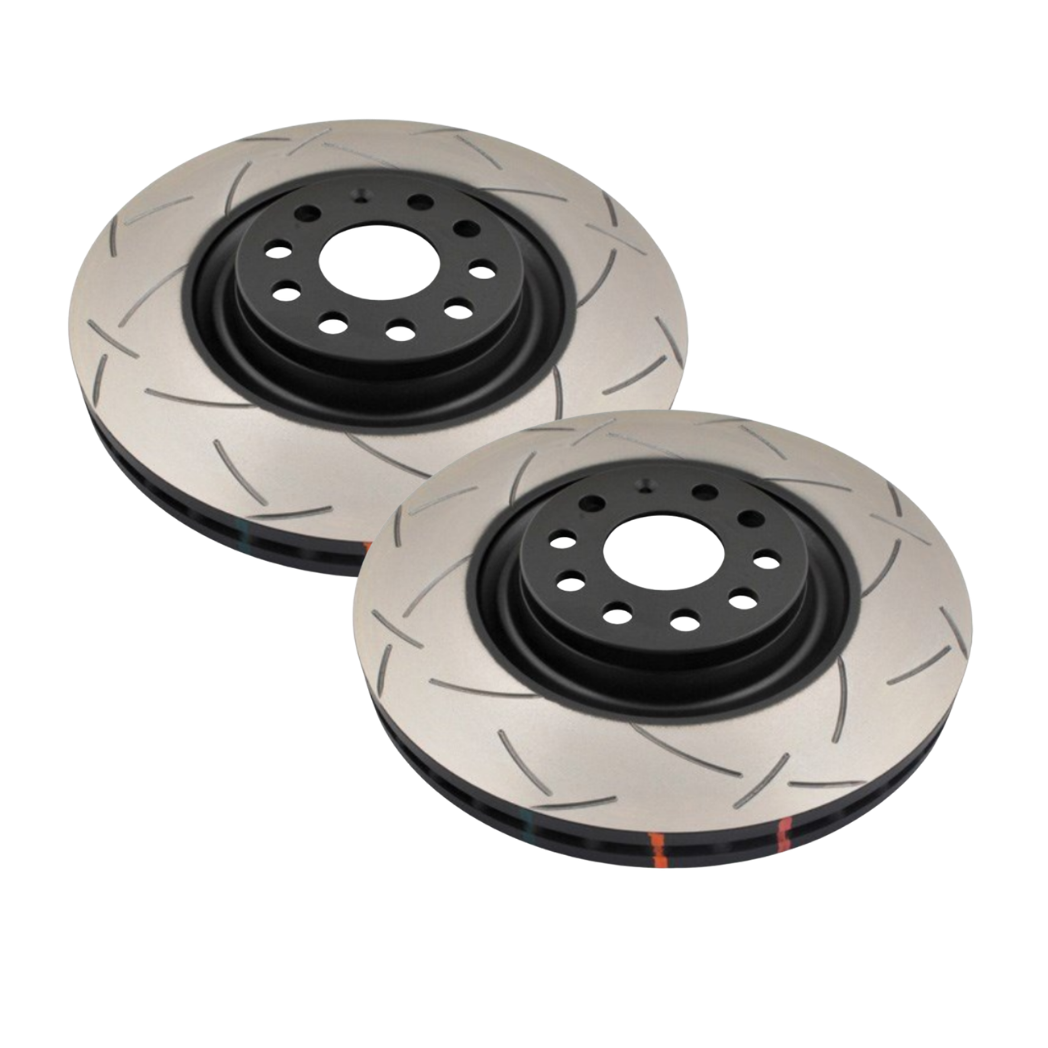

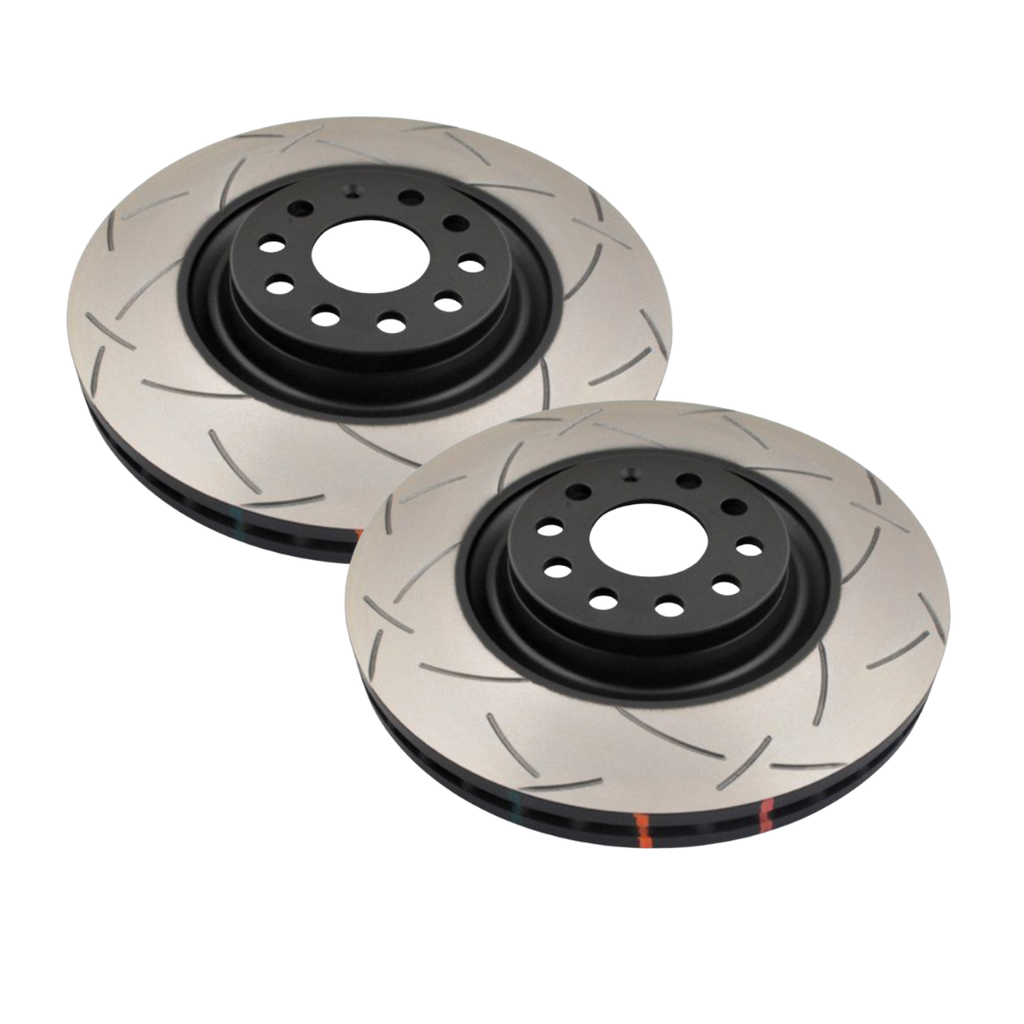

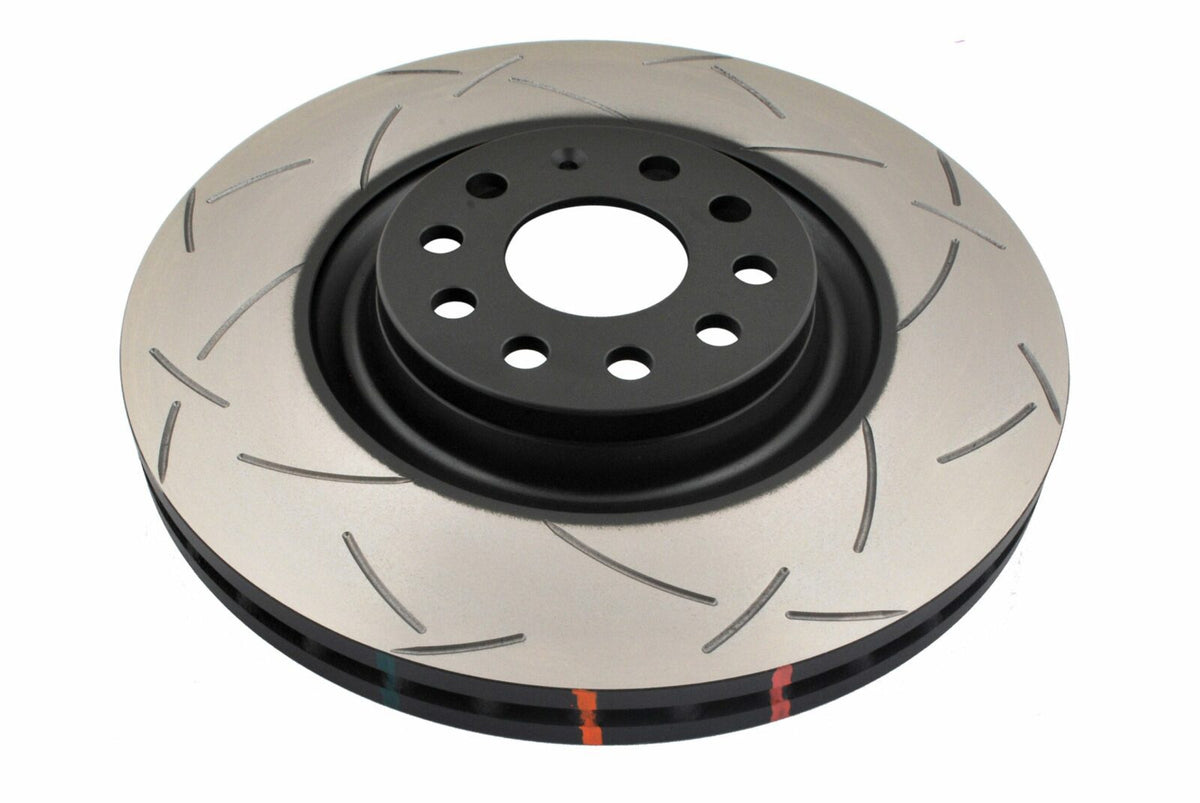

DBA 4000 Series T3 slotted front brake rotors, 340mm. Sold as a pair.
4000 Series T3 is the ultimate in direct replacement single piece performance brake rotors, featuring all the benefits of the 4000 Series plus DBA's patented world renowned T3 bi-directional slot design.
Built on the foundations of DBA's T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.
DBA recommend a T3 slot for high performance and heavy off-roading applications.
Features
- Thermal Stability Profiling. Heat treatment cycles realign the microstructure of the iron, resulting in increased rotor stability and durability.

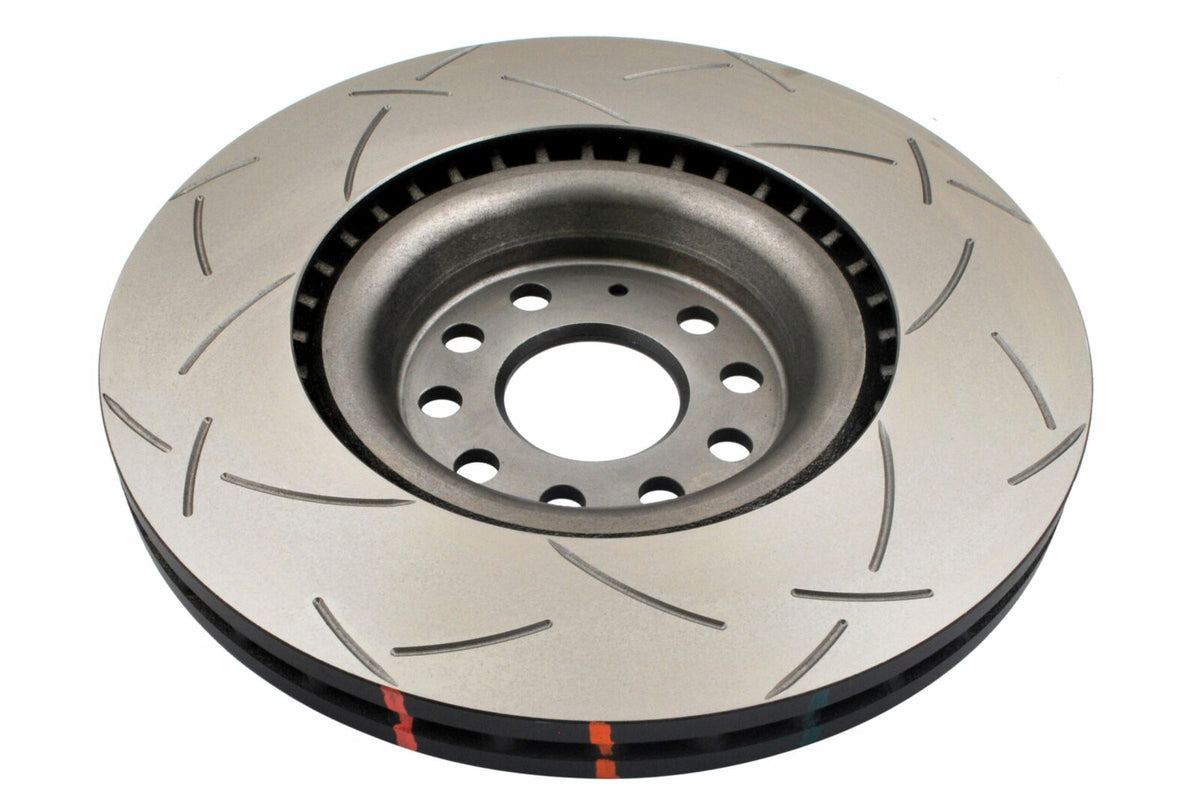

- Kangaroo Paw ventilation. A series of 144 diamond and teardrop patterned pillars for up to 30% more surface area and 20% better cooling efficiency than a traditional straight vane design.
- High carbon alloyed iron for constant and extreme heat over prolonged periods.
- CBN machine turned finish, minimising disc thickness variation and pad knock.
- Thermographic heat paint markings that change colour at set temperatures so you can monitor braking temps.
- Bi-directional slotting for universal left and right use.
- Painted non-friction areas to prevent rust.
Specifications
- Part number: DBA42830S
- Axle: Front
- Outer diameter: 340mm
- Disc thickness: 30mm, minimum 28mm
- Height: 49.7mm
- Centering diameter: 65mm
- Pitch circle: 112mm
- Vane design: Kangaroo Paw
- Warranty: 12 months, 20,000km
Suits vehicles with factory 340mm front rotors, including
- Volkswagen Golf R MK7 and MK7.5, 2013 onwards
- Volkswagen Golf GTI Performance, TCR, 40 Years and Wolfsburg MK7 and MK7.5, plus GTI MK8
- Audi S3 8V 2013-2020 and S3 8Y 2021 onwards
- Audi TT 2.0 TFSI, TTS and TT 45 TFSI quattro
- Audi Q3 45 TFSI F3 and SQ2 GA
- Cupra Leon, Formentor and Ateca
- Seat Leon Cupra, Ateca and Tarraco
- Skoda Octavia RS, Superb and Kodiaq
- Volkswagen Passat, Arteon, Tiguan, T-Roc R and Tayron
Australian made by DBA.
Not sure which rotor your car runs? These suit the 340mm front setup only. Give us a call with your rego on 02 9188 8055 and we will check it for you.
