FOX 4x4 Lift Kit Tour Pack, 3 INCH Lift Ford Ranger 11-18

CalOffRoadSKU: FRTP30F-1

Optional Coil Upgrade - CalOffroad Platinum Series Front Coil Springs are recommended for vehicles with additional weight: Light Duty - Fox Performance Series Coil - Standard Weight ($0)
Rear Lift Spring Weight Option: Light Duty 0-100kg
Price:
Sale price$4,200.00

Description

Ford Ranger PX 1 and 2 T6

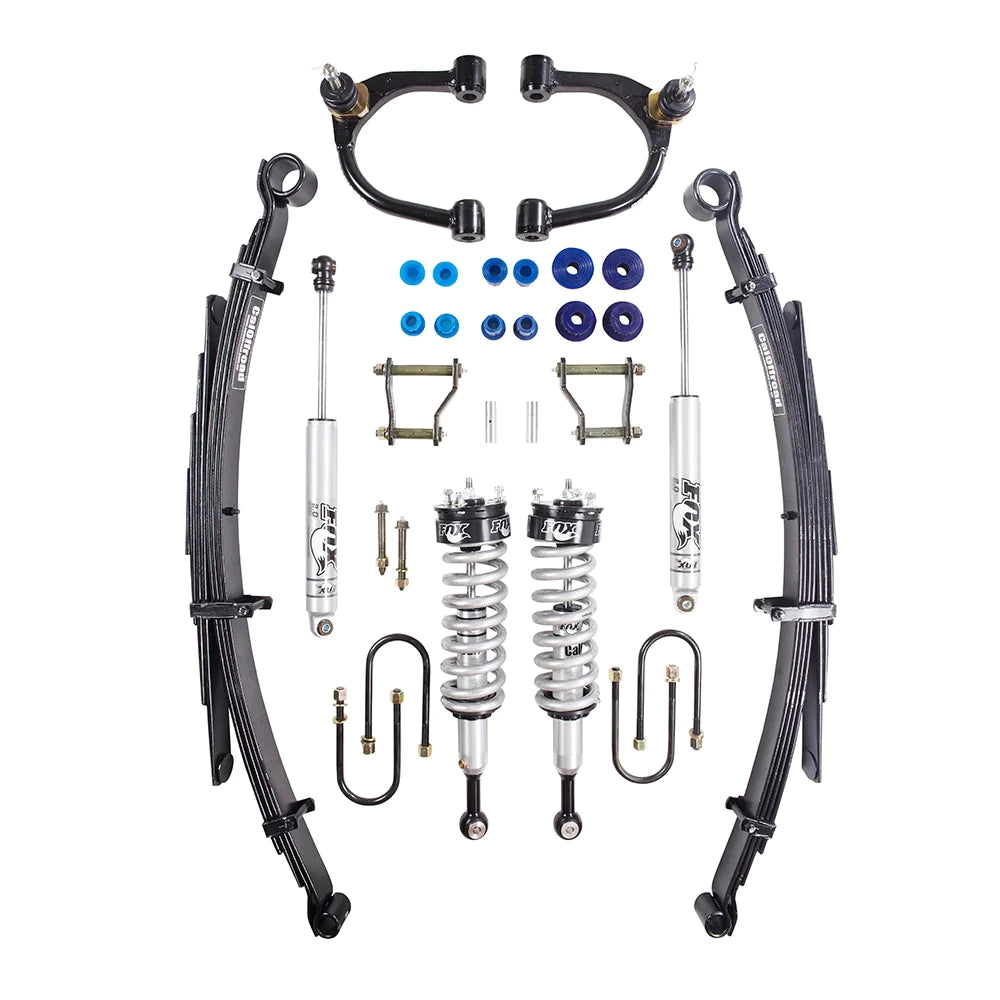

CalOffroad Fox Tour Pack - 3" Suspension Lift Kit

2 x Fox Coilover

2 x Fox Rear Shocks

2 x CalOffroad Leaf Spring

4 x Round U-bolt

1pr x Greasable Shackles

1 x Leaf Spring Bush Kit

2 x Greasable Pin

1 x Non Adjustable Upper Control Arm Kit, has built in caster and camber

1 x Tail Shaft Spacer Kit

CalOffroad has strong roots with offroad trucks that began in the early 80s.Spending time in the USA with industry leaders building the latest in vehicle design and offroad suspension technology. Testing offroad designs in Moab Utah and Colorado. CalOffroad has a family history of covering most of Australias remote and outback destinations. We have our own offroad testing facsility that we use to refine and develope products. This combined experience allows us to create the most advanced 4wheel drive suspension components available in Australia and anywhere in the world.

With the over 30 years of 4x4 and suspension developement this has helped us bring the most advanced technology into our suspension range.

CalOffroad supply the most advanced Fox 2.0 coilover.

CalOffroad leaf springs have been developed over many years and are designed to bring you the most advanced and smoothest ride possible.

Our leaves feature a specialy designed wear pad between each leaf. Each leaf pack features a specific build ratio that allows us to tune when the 1st stage engages with the 2nd stage this means we can supply you the smoothest riding leaf pack wether you have no weight or large anounts of weight.

we also build in a high flex design allowing for more wheel travel and if you require more again just let us know and we can custom build any pack to suit.

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

The coilovers come adjusted to an approximate height and may require fine tuning adjustment for your specific vehicle

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

Body 2.0" impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Hard-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design separates shock oil from the high-pressure nitrogen
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Oil JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing Large diameter, heavy-duty spherical
Mounting Direct replacement for stock and aftermarket lifts kits
Adjustments
  • Ride height preload ring
