Description
This Hayman Reese Towbar is designed to suit the Isuzu D-Max TF Cab Chassis 07/2020 On and Mazda BT-50 Cab Chassis 07/2020 On
This Towbar is rated to a capacity of 3500kgs with a ball weight capacity of 350kgs.

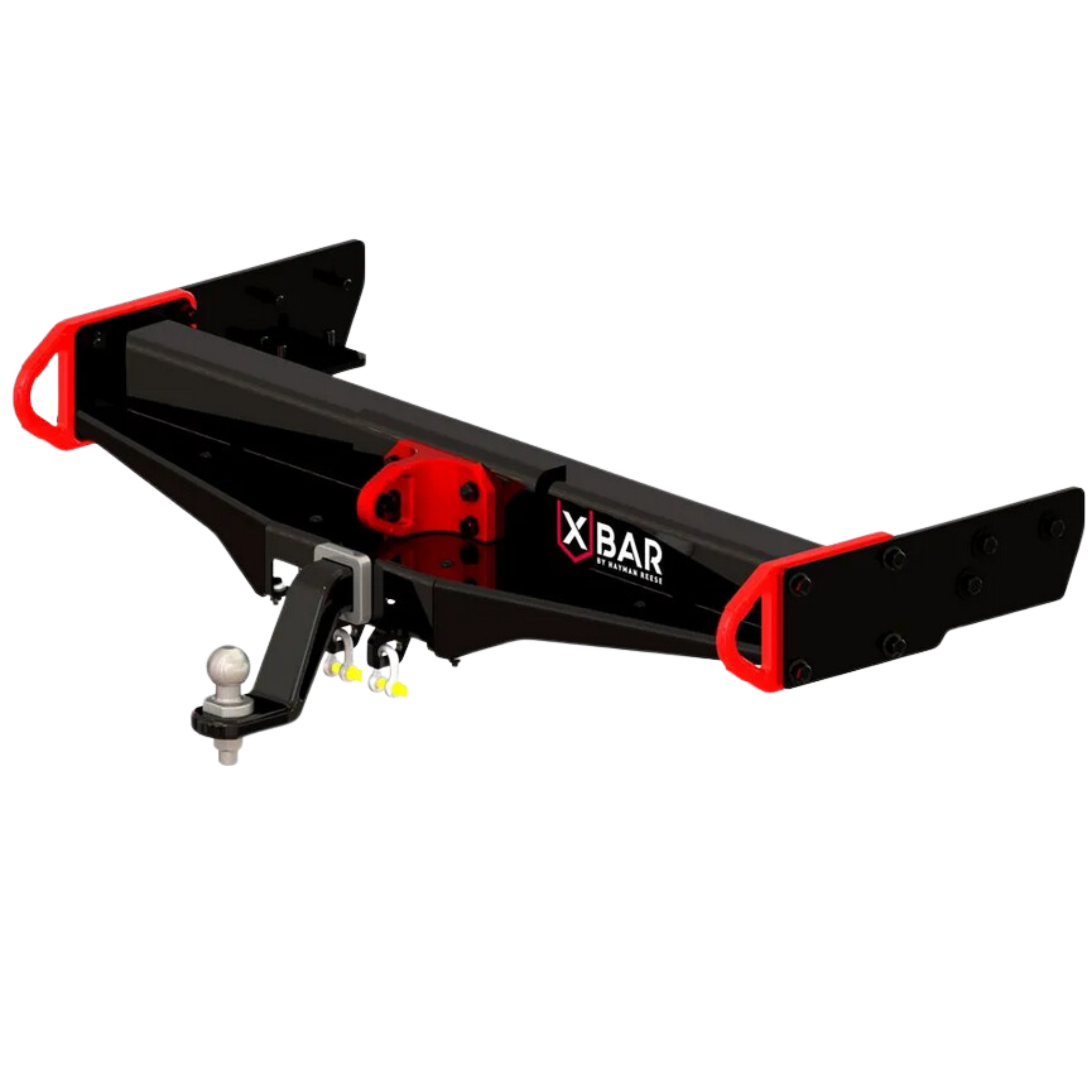

X-Bar by Hayman Reese
X-Bar. Built for tough off-road action.
Maximum Clearance
The Hayman Reese X-Bar sits higher on the vehicle, up to 100 mm vertically, offering improved departure angles of 5 degrees compared with some OEM and other aftermarket towbars.
Recovery Rated
The X-Bar provides a purpose designed and rated rear vehicle recovery system encompassed in a fully Australian Design Rules (ADR) compliant towbar and is rated to 8, 000 kg.
Superior Strength
The Hayman Reese X-Bar features increased thickness side arms for better rigidity, custom forged 700-grade steel recovery points, and high-tensile Australian Standard Grade 10.9 fasteners.
Additional Features
- Twin protected trailer socket mount points (7 or 12 pin flat & Anderson plug)
- Full ADR compliance, allowing for a 50mm height increase from suspension or tyre upgrades
- SmartPin hitch pin with integrated anti-rattle feature
- Maximum vehicle towing capacity across all fitments
-
Comes complete with:
- Flat sided superior finish tow ball
- Rated D shackles
- Metalshield, Hayman Reese’s premium eCoat & powder-coat finish
- Hayman Reese Limited Lifetime Warranty
- Tested to Australian Standards AS/4177 and ADR 62/02 in a NATA accredited laboratory
- Tested to industry standards for Static Overload, Durability and Recovery Overload.
-
Hayman Reese X-Bar Towbar (Class 4 Wired)
